TBFacetTableView 1.0.1

Maintained by Julian Krumow, Julian Krumow.

You want to add pod 'TBFacetTableView', '~> 1.0' similar to the following to your Podfile:

target 'MyApp' do
  pod 'TBFacetTableView', '~> 1.0'
end

Then run a pod install inside your terminal, or from CocoaPods.app.

Alternatively to give it a test run, run the command:

pod try TBFacetTableView

TBFacetTableView 1.0.1

By
Julian Krumow

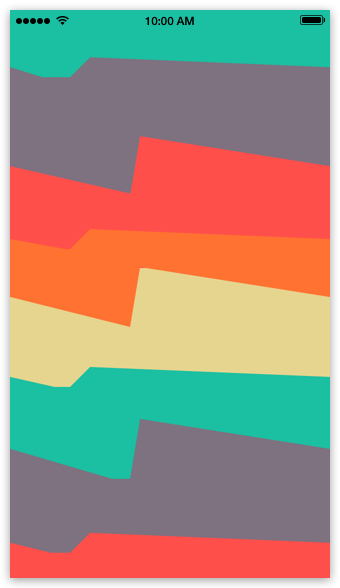

A UITableView with cells shaped like facets.

Example project

To run the example project; clone the repo, and run pod install from the TBFacetTableViewDemo directory first.

Requirements

Xcode 5
iOS 5.0

Installation

Usage

This pod consists of three classes:

TBFacetTableViewCell - UITableViewCell shaped like a facet or shard
TBFacetTableViewCellConfigurator - configures the cells
TBFacetTableViewCellObserver - handles the highlight state of the cells

To use the classes in your code just import TBFacetTableViewCellConfigurator.h.

Configuring cells

Implement the TBFacetTableViewCellConfiguratorDataSource protocol. The best place is your UIViewController subclass or UITableViewDatasource implementation:

- (UIColor *)facetTableViewCellConfigurator:(TBFacetTableViewCellConfigurator *)facetTableViewCellConfigurator facetColorForCellAtIndexPath:(NSIndexPath *)indexPath
{
    return // whatever color you like
}

- (UIColor *)facetTableViewCellConfigurator:(TBFacetTableViewCellConfigurator *)facetTableViewCellConfigurator highlightColorForCellAtIndexPath:(NSIndexPath *)indexPath;
{
    return // whatever color you like
}

- (CGPathRef)facetTableViewCellConfigurator:(TBFacetTableViewCellConfigurator *)facetTableViewCellConfigurator topPathForCellAtIndexPath:(NSIndexPath *)indexPath
{
    return // whatever CGPathRef you like - should match bottom path of cell above
}

- (CGPathRef)facetTableViewCellConfigurator:(TBFacetTableViewCellConfigurator *)facetTableViewCellConfigurator bottomPathForCellAtIndexPath:(NSIndexPath *)indexPath
{
    return // whatever CGPathRef you like - should match top path of cell below
}

Create an instance of TBFacetTableViewCellConfigurator passing a regular UITableView instance or subtype:

_facetCellConfigurator = [[TBFacetTableViewCellConfigurator alloc] initWithTableView:_facetTableView
                                                                            dataSource:self];

Configuring cells

Configure your TBFacetTableViewCell by passing it and its index path:

- (UITableViewCell *)tableView:(UITableView *)tableView cellForRowAtIndexPath:(NSIndexPath *)indexPath
{
    TBFacetTableViewCell *cell = [tableView dequeueReusableCellWithIdentifier:[TBFacetTableViewCell reuseIdentifier]
                                                                 forIndexPath:indexPath];
    [_facetCellConfigurator configureCell:cell atIndexpath:indexPath];

    return cell;
}

Author

Julian Krumow, [email protected]

License

TBFacetTableView is available under the MIT license. See the LICENSE file for more info.
