RSColourSlider

About:

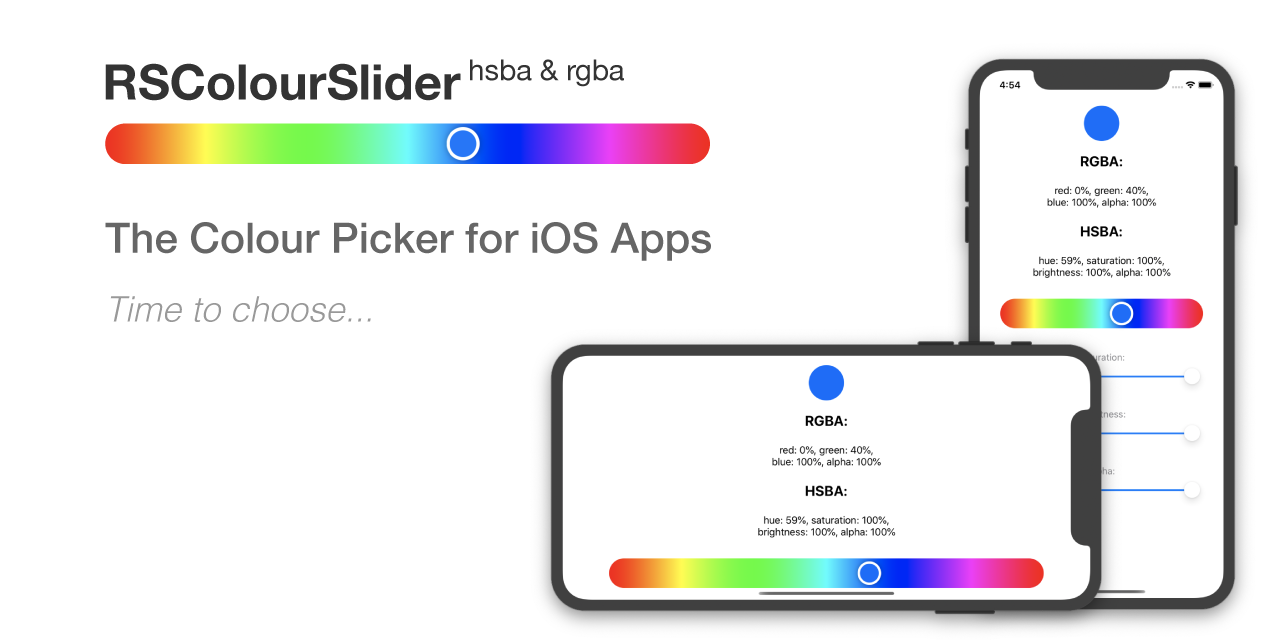

RSColourSlider is able to give an opportunity for your app to use a colour picking functionality. The colour picker is implemented as a regular slider, which will be familiar to every iOS user. It's easy to install and setup because RSColourSlider inherits from UIView class. You can inherit your own class from RSColourSlider and change elements of the slider from your custom subclass, also you can setup it during a runtime in an instance of any UIViewController subclass. This interface element was created as a simplified iOS analogue of NSColorPicker for macOS.

Features:

• Easy to use
• All rainbow colours can be applied
• Supports autolayouts and Storyboards
• Flexible customisation

Requirements:

iOS 12.0+, Swift 5.0+

Installation:

RSColourSlider is available through CocoaPods. To install it, simply add the following lines to your Podfile:

platform :ios, '12.0'
use_frameworks!

pod 'RSColourSlider'

Then run the "install" command in the terminal:

pod install

Check Getting Started for more information...

Documentation:

First of all import the framework:

import RSColourSlider

Object Creation:

You may create an instace of RSColourSlider traditionally, with code:

//example
let colourSlider = RSColourSlider(frame: CGRect(x: 0, y: 0, width: self.view.bounds.width, height: 50))
self.view.addSubview(view)

You may also drag a UIView into your ViewController in the storyboard, set the chosen view's Class and Module to RSColourSlider in identity inspector and then create its outlet:

@IBOutlet weak var colourSlider: RSColourSlider!

You have to set a slider's delegate to your instance of ViewController, for accesing its delegate methods when the slider value changes:

//for example in viewDidLoad()
override func viewDidLoad() {
    super.viewDidLoad()
    colourSlider.delegate = self
}

Delegate:

colourGotten(_:)

To get a UIColor when the slider's value did change:

func colourGotten(colour: UIColor) {
    self.view.backgroundColour = colour
}

colourValuesChanged(_:) //RGBA

To get RGBA values from the value of the slider:

func colourValuesChanged(to red: CGFloat, green: CGFloat, blue: CGFloat, alpha: CGFloat) {
    print(red, green, blue, alpha) //For example
}

colourValuesChanged(_:) //HSBA

To get HSBA values from the value of the slider:

func colourValuesChanged(to hue: CGFloat, saturation: CGFloat, brightness: CGFloat, alpha: CGFloat) {
    print(hue, saturation, brightness, alpha) //For example
}

Helpful Methods:

getCurrentRGBAValues()

Returns a tuple of current RGBA values, call it if you changed brightness, alpha or saturation by another UISlider and you want to set the current, chosen colour to some UI element, or read its values:

let rgbaValues = getCurrentRGBAValues()
print(rgbaValues.red, rgbaValues.green, rgbaValues.blue, rgbaValues.alpha)

getCurrentHSBAValues()

Returns a tuple of current HSBA values, call it if you changed brightness, alpha or saturation by another UISlider and you want to set the current, chosen colour to some UI element, or read its values:

let hsbaValues = getCurrentHSBAValues()
print(hsbaValues.hue, hsbaValues.saturation, hsbaValues.brightness, hsbaValues.alpha)

setSliderValueBy(colour: UIColor)

Moves the thumb to chosen value and updates the slider by passing colour as the argument:

//for example in viewDidLoad()
override func viewDidLoad() {
    super.viewDidLoad()
    colourSlider.setSliderValueBy(colour: UIColor.blue)
}

setSliderValueByColourValues(hue: CGFloat, saturation: CGFloat, brightness: CGFloat, alpha: CGFloat)

Moves the thumb to chosen value and updates the slider by passing HSBA values as the arguments:

//for example in viewDidLoad()
override func viewDidLoad() {
    super.viewDidLoad()
    colourSlider.setSliderValueByColourValues(hue: 0.5, saturation: 1, brightness: 1, alpha: 1)
}

TODO: setSliderValueByColourValues(red: CGFloat, green: CGFloat, blue: CGFloat, alpha: CGFloat)

setCornerRadius(by value: CGFloat)

Safety method to set corner radius of the slider:

//for example in viewDidLoad()
override func viewDidLoad() {
    super.viewDidLoad()
    colourSlider.setCornerRadius(by: colourSlider.bounds.height / 2)
}

handlePanGesture(_ gestureRecognizer: UIPanGestureRecognizer)

Handles thumb's moving, can be overriden:

@objc open func handlePanGesture(_ gestureRecognizer: UIPanGestureRecognizer)

Properties:

delegate: RSColourSliderDelegate

Triggers delegate's method

public var delegate: RSColourSliderDelegate?

brightness: CGFloat

Changing this value affects brightness of the slider:

open var brightness: CGFloat = 1.0 //defualt

saturation: CGFloat

Changing this value affects saturation of the slider:

open var saturation: CGFloat = 1.0 //default

alphaColourValue: CGFloat

Changing this value affects transparency of the slider:

open var alphaColourValue: CGFloat = 1.0 //default

colourChosen: UIColor

The current colour that slider shows:

public var colourChosen: UIColor = UIColor(hue: 0, saturation: 1, brightness: 1, alpha: 1) //default

thumbView: UIView!

The Thumb View. Can be modified:

public var thumbView: UIView!

ThumbView has the following values:

//shadow
thumbView.layer.shadowColor = UIColor.black.cgColor
thumbView.layer.shadowOffset = .zero
thumbView.layer.shadowOpacity = 0.3
thumbView.layer.shadowRadius = 4.0
//borderWidth
thumbView.layer.borderWidth = 4
thumbView.layer.borderColor = UIColor.white.cgColor
thumbView.addGestureRecognizer(panGesture)

backgroundColouredView: UIView!

View that contains all layers and subview (not thumbView). Width of this view is a deviders when the slider calculates hue value:

public var backgroundColouredView: UIView!

RSColourView inherits from UIView and it can use methods of UIView class!

Logic:

Value | Min | Max | Hue | 0 | 1 | Saturation | 0 | 1 | Brightness | 0 | 1 | Alpha | 0 | 1 |

License:

RSColourSlider is available under the MIT license. See the LICENSE file for more info.
