AYStripeChart 1.1.3

Maintained by andjash.

You want to add pod 'AYStripeChart', '~> 1.1' similar to the following to your Podfile:

target 'MyApp' do
  pod 'AYStripeChart', '~> 1.1'
end

Then run a pod install inside your terminal, or from CocoaPods.app.

Alternatively to give it a test run, run the command:

pod try AYStripeChart

AYStripeChart 1.1.3

By
Andrey Yashnev

Configurable stripe chart

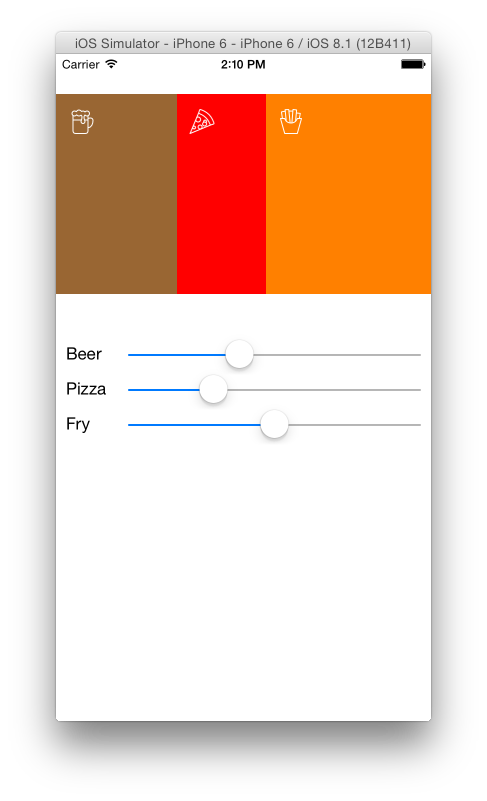

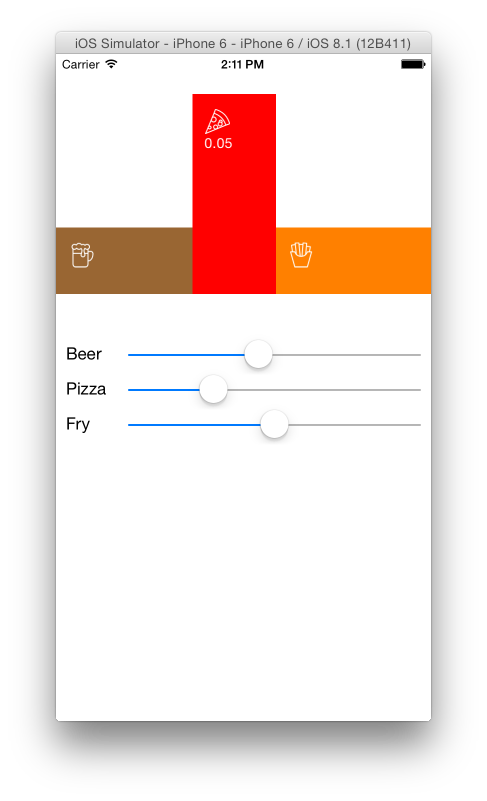

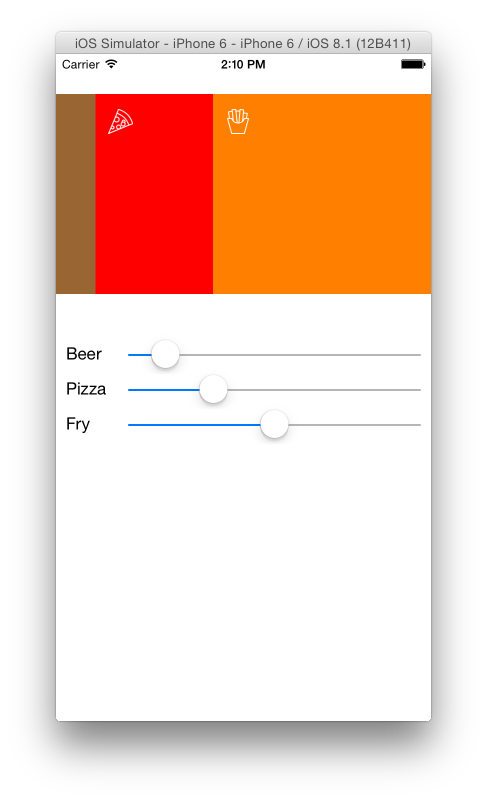

Preview

Usage

Import required headers

#import "AYStripeChartView.h"
#import "AYStripeChartEntry.h"

Create instance of AYStripeChartView and attach it to another view. Create instances of AYStripeChartEntry according to your data and attach entries to AYPieChartView

    AYStripeChartEntry *beer = [AYStripeChartEntry entryWithValue:0.2 color:[UIColor brownColor] detailsView:beerDetails];
    AYStripeChartEntry *pizza = [AYStripeChartEntry entryWithValue:0.1 color:[UIColor redColor] detailsView:pizzaDetails];
    AYStripeChartEntry *fry = [AYStripeChartEntry entryWithValue:0.5 color:[UIColor orangeColor] detailsView:fryDetails];

    self.stripeChart.stripeChartEntries = @[beer, pizza, fry];

Thats all for simple case!

For more interesting cases pls review demo.
